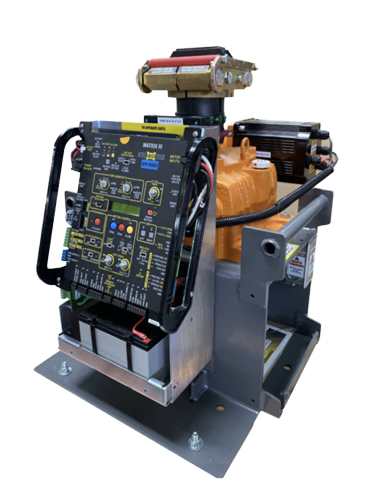

MEGATRON TANK INDUSTRIAL SWING GATE OPERATOR
The MEGATRON TANK is a high-traffic commercial super heavy duty swing gate operator. Its 24VDC brushless motor has the power of a 2.5HP AC motor that can operate in temperatures up to 158F and will last approximately 6 million cycles. The Megatron Tank implements a size 100 gearbox that offers a 900:1 direct drive dual gear reduction for maximum torque at a low amperage while providing a super silent operation. With a large 3 1/4" diameter solid steel output shaft and cst iron clamping system, the Tank doesn't need a magnetic locking system. The built in intelligent ramp-up and ramp-down gate speed control offers smooth operation that will also extend the life of the mechanical systems. A solid steel lockable cover helps to prevent intruders and vandalism of the unit.
- Rated for extreme slide gates up to 4500 lbs.
- Brushless DC Swing Gate Operator.
- Built-in Battery Backup.
- Offers the maximum level of gate control.
Instant Gate Quote
With our Free Gate Estimator Tool, it is easy to compare different configurations, options, and styles. Get an instant price quote to help you decide which option is right for you!
a closer look
Professional-Grade Features
- Adaptive obstruction sensor for much better gate safety system. 16 selectable sensitivity settings.
- UL 325/991 compliant Class I, II, III, and IV. CSA approved.
- Pinch arm protection design.
- Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions.
- Built-in advanced entrapment protection and alarm output.
- Built-in gate-in-motion alarm for industrial applications.
- Tamper alert relay output triggers "on" if gate is forced open.
- Audible alarm if gate is tampered with or ERD is triggered for higher security.
- Gate disable feature, disables all inputs with exception of the fire department input for high security.
- Advanced anti-tailgate features to provide higher security.
- Built-in transaction buffer for higher security.
- Lockable cover with key lock release to prevent intruders and vandalism.
- 24V Brushless DC motor equivalent to 2.5 HP AC motor.
- Switchable 115/230 voltage selection and solar option.
- 'Solar Ready' battery module with built-in advanced solar regulator.
- Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 channels) including loop detector input connections.
- Three modes of selectable battery backup functions.

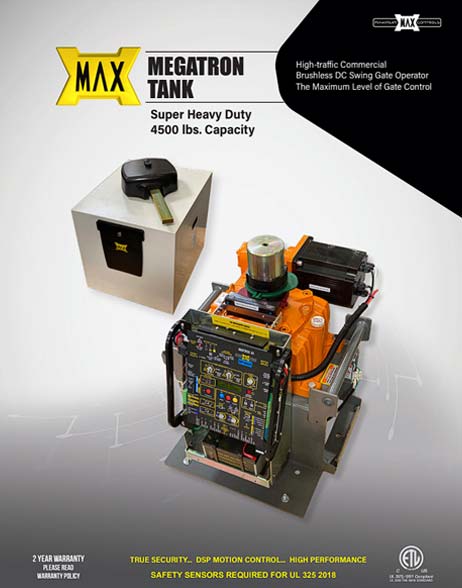

The Megatron Tank Sales Sheet (PDF)
Get an in-depth look at a super heavy-duty option for an industrial swing gate operator, which gives the maximum level of gate control.
Click the button below to learn more about our Megatron Tank Gate Operator. Take a closer look at product highlights, included parts and accessories, operator mechanics, and more.
Download the PDF!No. The brushless DC motor in the Megatron Tank uses "Hall Effect" magnetic sensing to identify over five thousand precise rotational positions during 90 degrees of gate movement.
The power supply input accepts 115V or 230v AC single phase.
The Megatron Tank has the ability to move gates that are 10'/4,500lbs or 30'/3,000lbs
The backup batteries will allow operation up to 40 cycles. Afterward, there are mechanical and electrical manual gate release functions.
